Re: 1969 Sonett heater fan wire numbers: changed with fan change? Posted by Reed R [Email] (#1557) [Profile/Gallery] (more from Reed R) on Sat, 25 Dec 2021 14:13:36 In Reply to: Re: 1969 Sonett heater fan wire numbers: changed with fan change?, Jonathan Bartlett, Fri, 24 Dec 2021 18:11:51 Members do not see ads below this line. - Help Keep This Site Online - Signup |
Not sure if this is going to help, but I looked in Ashcraft's SAAB Electrics for Everyone (which I've found to be an amazing reference for my Sonett III), which contains a schematic for the 1968 & 1969 V4s.

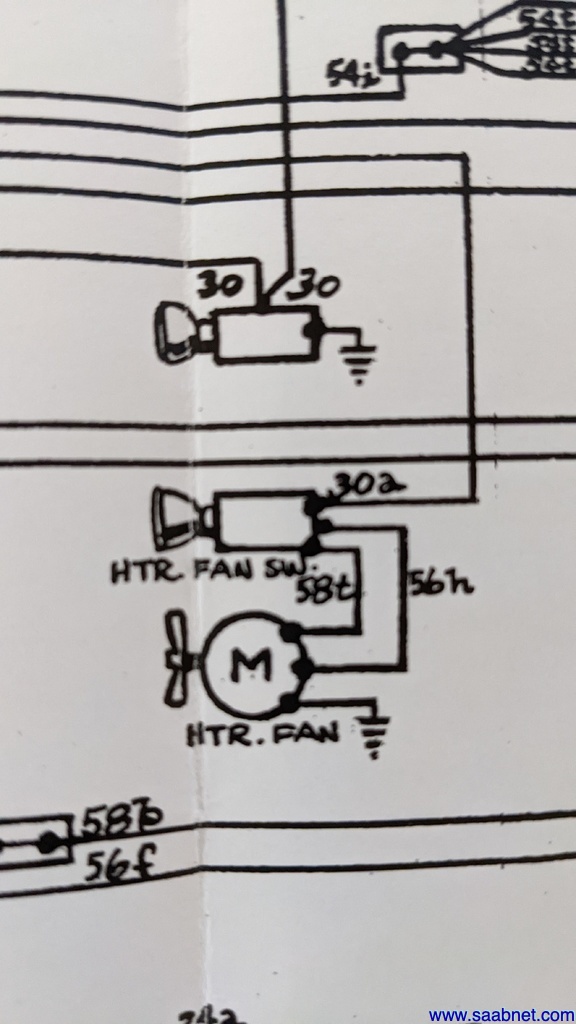

It also seems to indicate 58t (Gray) and 56h (Yellow) are the connectors to the heater fan. Detail for that part of the schematic attached.
However, the book also mentioned that not all V4 Sonetts had the same wiring and that SAAB did not hesitate to change wire color or numbers from one car to the next....
